Mechanical & Hydraulic replacement Parts



Replacement Cables

Ezy-Glide Replacement Cables fit all models of Ezy-Stik® Steering Systems: Ezy-Stik® II 830, Ezy-Stik® II 840, or Ezy-Stik® III 870 systems. We can manufacture any length cable that you need in 1/2 foot (6 inch) increments.

All cables are the same price up to 15'. Add $3.00 per additional foot for any length over 15’.

LUBRICATION and maintenance:

Ezy-Glide only recommends 80 Below® Action Lube for Ezy-Stik® lubrication. For more info click here: 80 Below® Lubricant.

Ordering

Replacement Cable part numbers include the cable length.

EXAMPLE
Replacement Part Number = RC-1250

Part Number Breakdown:

  • RC = Replacement Cable

  • 1250 = Cable length in 1/2 foot measurement i.e. 12.50 feet

Other Examples: 9' cable=RC-0900, 12' cable=RC-1200, 13.5' cable=RC-1350

DETERMINING Cable Length

REPLACING AN EXISTING CABLE WITH THE SAME LENGTH
Look on the black cable casing near the engine end of the cable for a stamp containing cable length similar to one of the photos below.

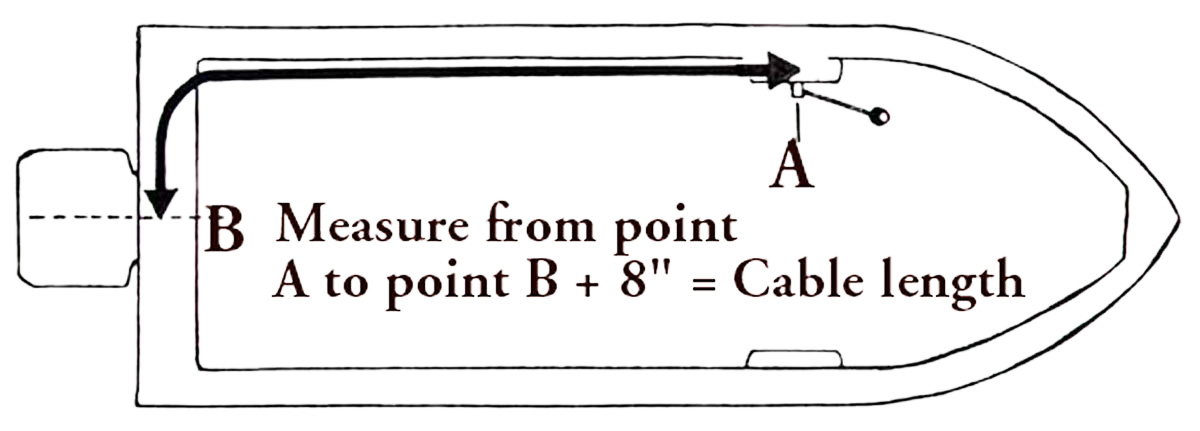

Measuring Cable Length

MEASURE AND ADD 8 INCHES
Measure from the center of the helm position to the center of the engine and add 8” to this measurement.

ROUND UP YOUR MEASUREMENT
If your measurement falls exactly on a 6-inch increment (e.g., 12' or 12'6"), order that exact length. If your measurement falls between 6-inch increments, round up to the nearest half-foot. Example: A 12'2" measurement should order a 12½' cable.

Replacement Parts for Mechanical Systems

H-260 - Replacement Lever (1/2” x 16”) Lever, Knob, & Nut (also available in 20” length)

HP-900 - Mounting Hardware Pack

K-060 - Black Knob for 1/2” Handle (does not fit earlier models with 7/16” handles)

HP-2000 - Lever & Hardware Pack for EZY-STIK® II 840 System

HP-3000 - Lever & Hardware Pack for EZY-STIK® III 870 System

DC-212 - Dress Cover for all EZY-STIK® Systems

HO-840 - Replacement Housing for Helm of EZY-STIK® II 830/840 System (BLACK BOX ONLY. NO INSIDE PARTS.)

HO-870 - Replacement Housing for Helm of EZY-STIK® III 870 System (BLACK BOX ONLY. NO INSIDE PARTS.)

Hydraulic Systems

REPLACEMENT PARTS

  • CY-U15 - Universal Cylinder For 2500 Series Steering Systems

  • HP-250 - Helm Pump (2.8 Turns) For 2500 Hydraulic Steering Systems

  • L-08 - Replacement Lever & Hardware (For Hydra-Stik System Only)

  • BZ-10 - Replacement Bezel (For Hydra-Stik System Only)

  • HG-SW - Hydra-Glide Steering Wheel For Hydraulic Systems

  • SK-SW - Sidekick Steering Wheel For Hydraulic Systems
