HydraStik®, SideKick®, HydraGlide® and EG Line Hydraulic Systems

ABOUT THE HYDRASTIK, SIDEKICK & HYDRAGLIDE SYSTEMS
Our Hydraulic Steering Systems are designed for up-front steering as the mechanical stick-steering systems with the added advantage of fewer turns from lock-to-lock and no feedback. These systems have a manufacturer’s recommended maximum horsepower rating of 90 hp OB/110 Jet. The total turns from lock-to-lock is only 1.8 which requires the operator to turn a mere .90 turns to move the boat from center position to a complete right or a complete left turn. Hydraulic systems may be installed on either the port or starboard side of the boat or installed into a console mount. An installation instruction manual is included with each system.


Compact Design

Compact Design

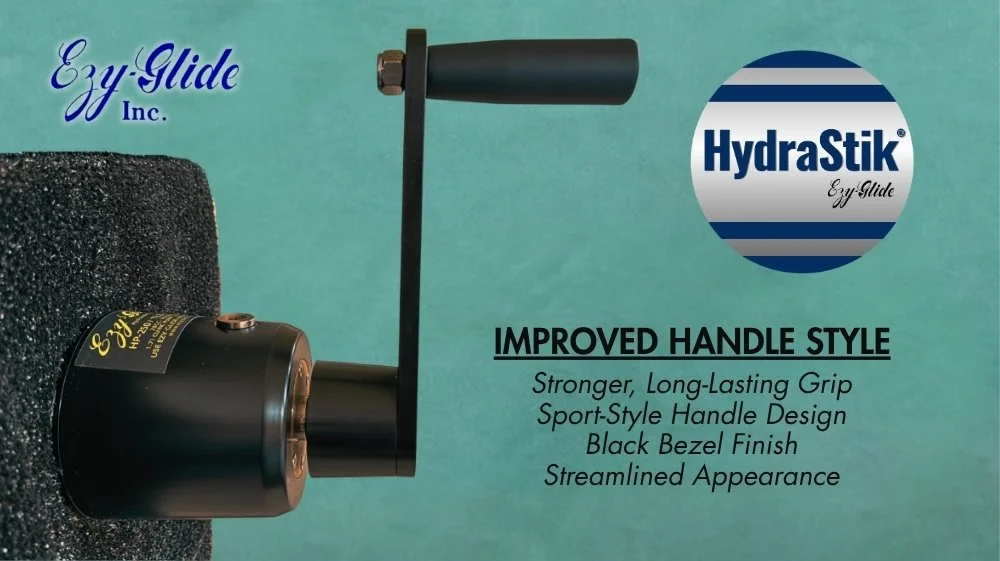

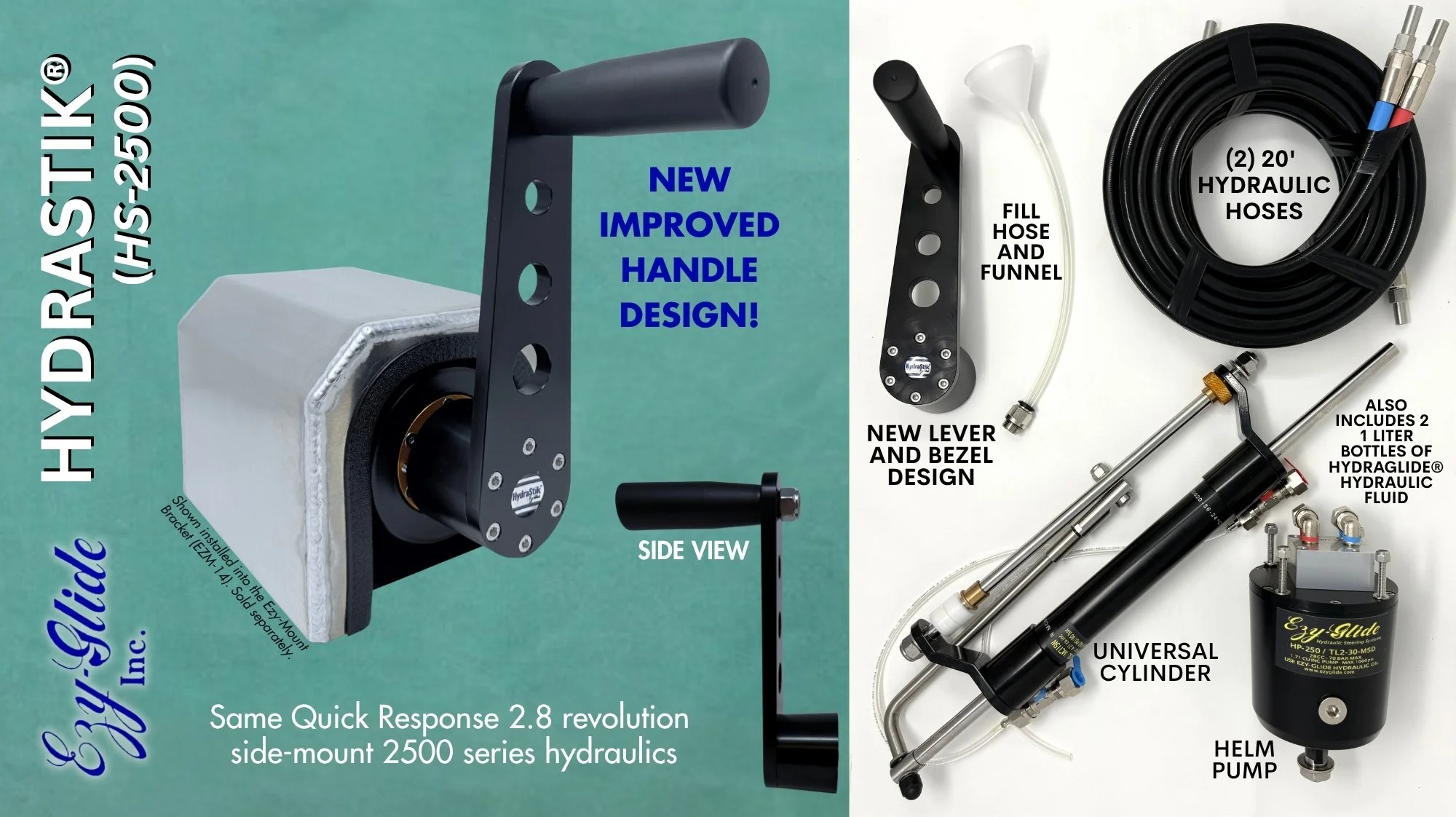

HYDRASTIK HS-2500

Specifications:

  • Hydraulic Helm Pump (HP-250)
  • 20’ Hydraulic Hose with Fittings (set of 2)  (HO-2)
  • Universal Hydraulic Cylinder (CY-U15)
  • Installation Package
    (includes Woodruff Key
    and Shaft Nut) (IP-1)
  • Bezel (BZ-10)
  • HydraStik Lever (L-08)
  • HydraGlide Hydraulic Fluid
    (1 liter) (HF-2)

Fast Response Hydraulics

Fast Response Hydraulics

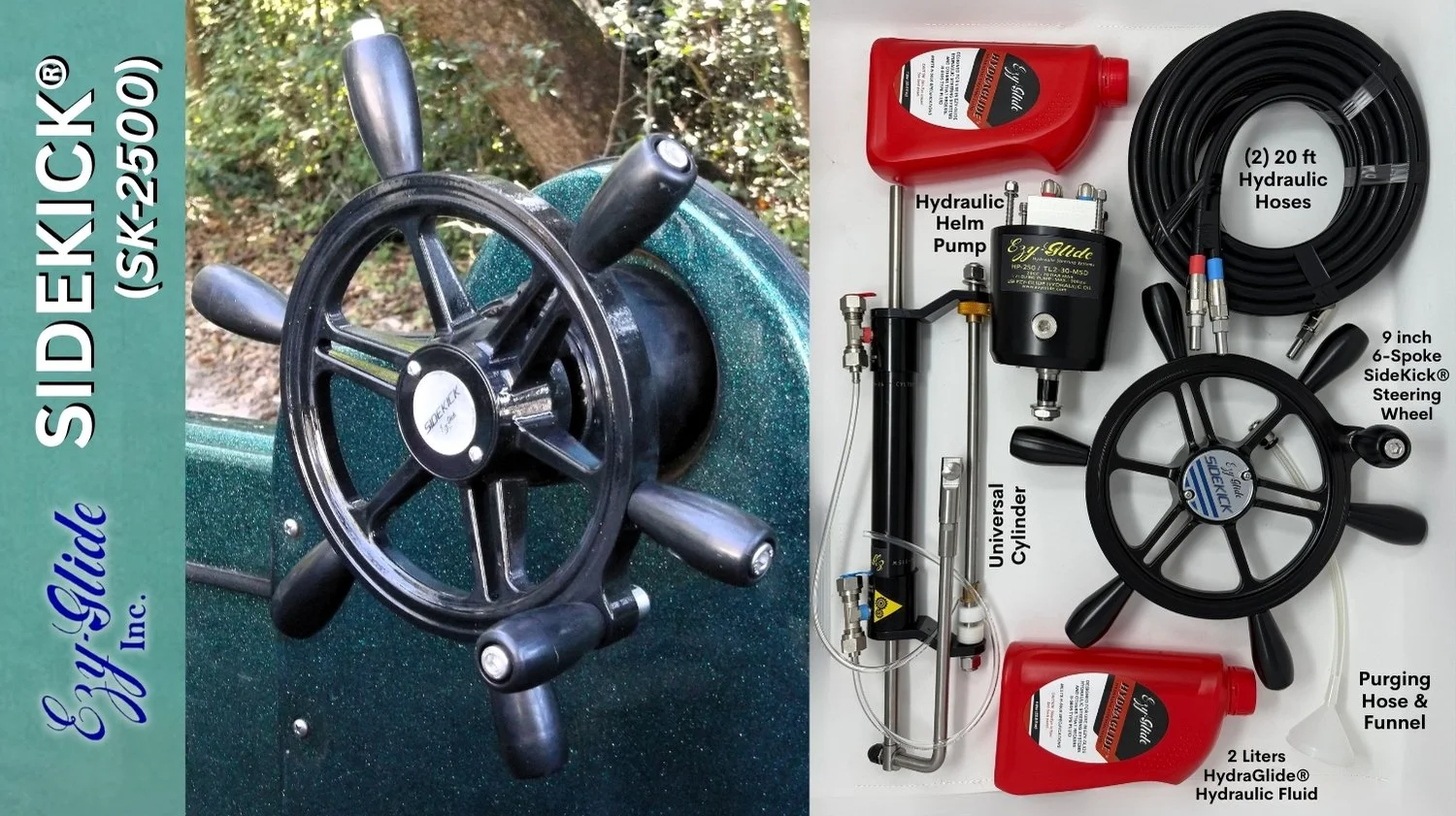

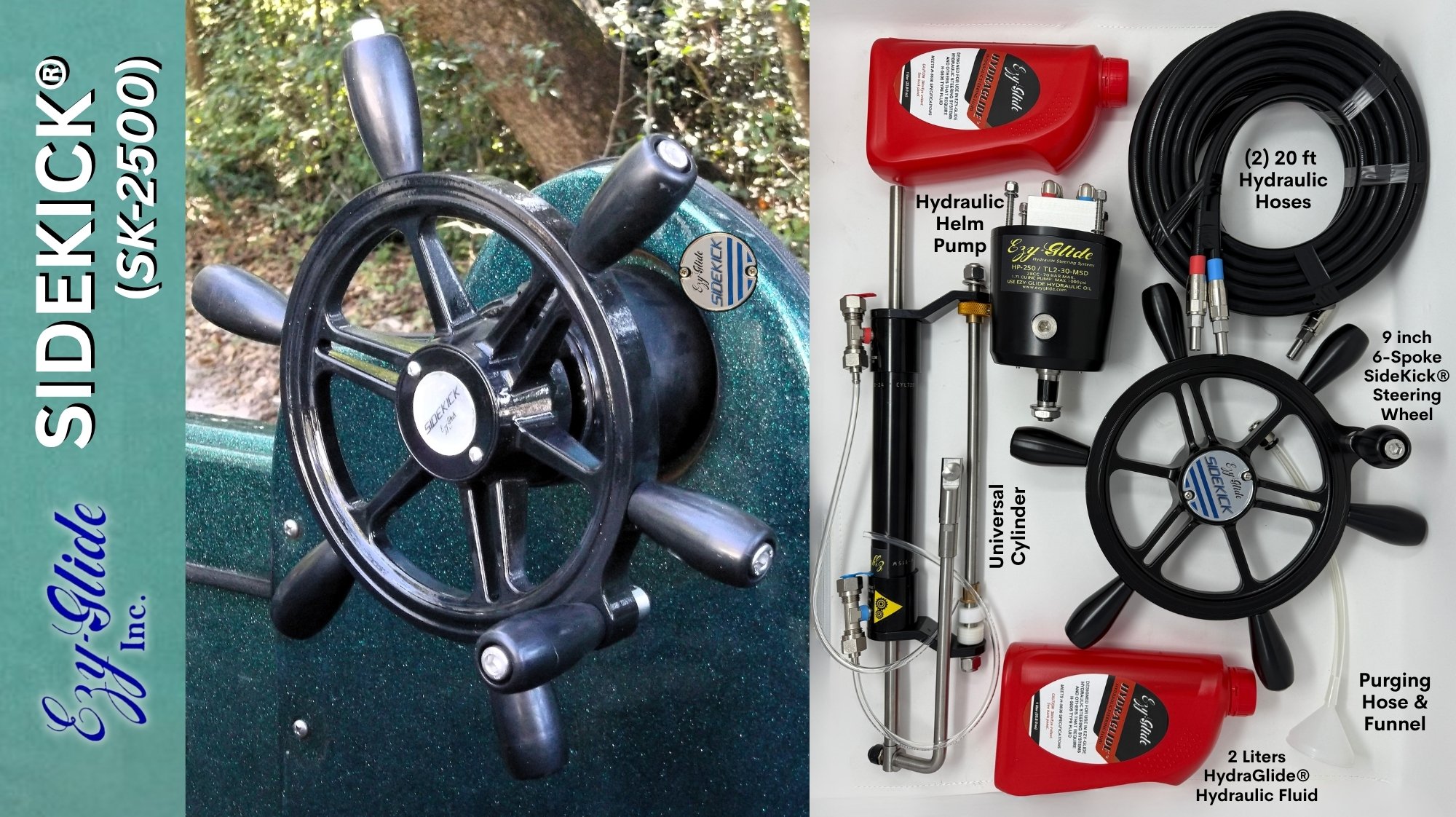

Sidekick® sk-2500

Specifications:

  • Hydraulic Helm Pump (HP-250)
  • 20’ Hydraulic Hose with Fittings (set of 2)  (HO-2)
  • Universal Hydraulic Cylinder (CY-U15)
  • Installation Package (includes Woodruff Key & Shaft Nut) (IP-1)
  • SideKick Steering Wheel (SK-SW)
  • HydraGlide Hydraulic Fluid
    (1 liter) (HF-2)

Only 1.8 Turns from Lock to Lock

Only 1.8 Turns from Lock to Lock

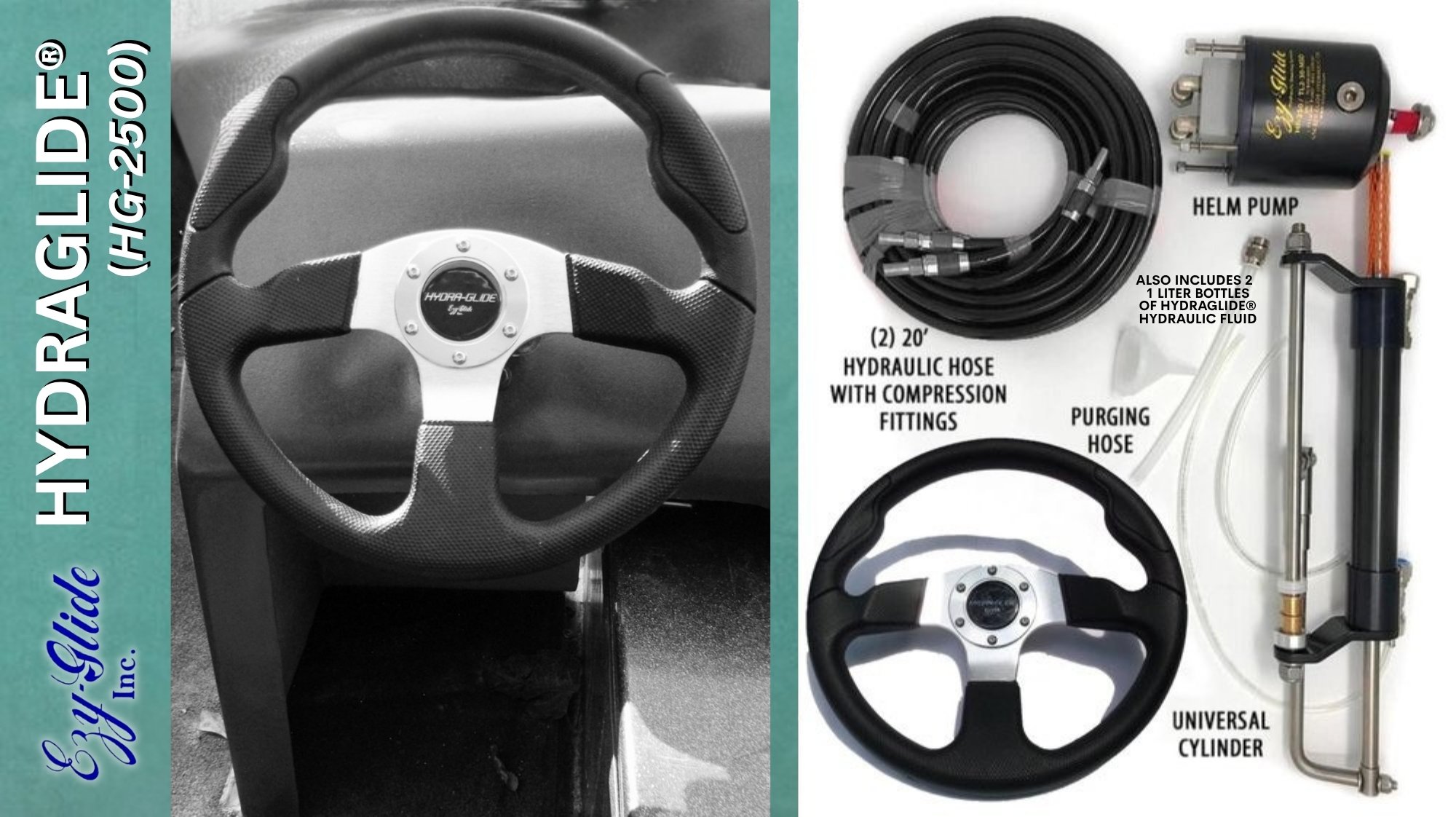

HydraGlide® HG-2500

SPECIFICATIONS:

  • FAST RESPONSE CONSOLE!
  • Hydraulic Helm Pump (HP-250)
  • 20’ Hydraulic Hose with Fittings (set of 2) (HO-2)
  • Universal Hydraulic Cylinder (CY-U15)
  • Installation Package (includes Woodruff Key & Shaft Nut) (IP-1)
  • HydraGlide Steering Wheel (HG-SW)
  • HydraGlide Hydraulic Fluid
    (1 liter) (HF-2)

EG Line (Coming Soon)

ABOUT THE EG-LINE HYDRAULIC SYSTEMS
Compact design, excellent quality, innovative technology: this is what you can expect from the new EG Line of Ezy-Glide Hydraulic Systems for 2017!

We offer the EG-90hp, EG-120hp, EG-150hp and the EG-IB33 Inboard models.

3-Year Warranty For engines up to 150HP Outboard & Inboards up to 33'

Every part of the steering system is produced with strict-quality control through manual assembly. The use of quality materials guarantees reliability and long service life. All parts are anodized and resistant to the highly corrosive effects of salt water.

The pump housing is hardened, hot-pressed aluminum base material. The thickness and aircraft grade materials prevent leakage or oil from fog formation even under very high pressure. The three ball-bearings in the pump ensure outstanding precision and exceptionally smooth, consistent functioning. All parts are manufactured through high-precision machines and go through quality control after each phase of production to ensure the highest quality.

The cylinders are made of aircraft grade cold drawn, hardened aluminum with high-precision machines. The thick-walled cylinder is made of a special raw material with even higher tensile strength than the traditional bronze types and tolerates high working pressure.

The hydraulic hoses are specially manufactured twin-tubes with high-pressure resistance and are equipped with custom-made stainless steel and nickel-plated couplings.

All New!  For outboard engines up to 90HP.

All New!  For outboard engines up to 90HP.

EG-90 Hp System

SPECIFICATIONS:
Output Force: 236 KG • Torque: 51 KGF • Max Speed: 35 Knots • Turns: 4.5

KIT INCLUDES:
Hydraulic Pump:  16CC/REV Max 80 BAR Lock-Valve
Hydraulic Cylinder:  69CC VOL. Max 70 BAR Stroke 206MM
20' Hose Set:  5/16 Twin Max 410 BAR Twin 5+5 MT.
Hydraulic Oil:  1 Liter Temp: +60º / -30º


All New!  For outboard engines up to 120HP.

All New!  For outboard engines up to 120HP.

EG-120 Hp System

SPECIFICATIONS:
Output Force: 270 KG • Torque: 57 KGF • Max Speed: 55 Knots • Turns: 4.6

KIT INCLUDES:
Hydraulic Pump:  16CC/REV Max 80 BAR Lock-Valve
Hydraulic Cylinder:  69CC VOL. Max 70 BAR Stroke 206MM
20' Hose Set:  5/16 Twin Max 410 BAR Twin 5+5 MT.
Hydraulic Oil:  1 Liter Temp: +60º / -30º


All NEW!  For outboard engines up to 150HP.

All NEW!  For outboard engines up to 150HP.

EG-150 Hp System

SPECIFICATIONS:
Output Force: 270 KG • Torque: 57 KGF • Max Speed: 55 Knots • Turns: 4.6

KIT INCLUDES:
Hydraulic Pump:  16CC/REV Max 80 BAR Lock-Valve
Hydraulic Cylinder:  71CC VOL. Max 80 BAR Stroke 212MM
20' Hose Set:  5/16 Twin Max 410 BAR Twin 5+5 MT.
Hydraulic Oil:  1 Liter Temp: +60º / -30º


ALL NEW!  For Inboard engines up to 33'.

ALL NEW!  For Inboard engines up to 33'.

EG Inboard IB-33 Feet System

SPECIFICATIONS:
Output Force: 387 KG • Torque: 58 KGF • Max Speed: 35 Knots • Turns: 5

KIT INCLUDES:
Hydraulic Pump:  16CC/REV Max 70 BAR Lock-Valve
Hydraulic Cylinder:  83CC VOL. Max 80 BAR Stroke 150MM
20' Hose Set:  5/16 Twin Max 410 BAR Twin 5+5 MT.
Hydraulic Oil:  1 Liter Temp: +60º / -30º


REPLACEMENT ITEMS FOR HYDRAULIC SYSTEMS

  • CY-U15 - Universal Cylinder For 2500 Series Steering Systems
  • HP-250 - Helm Pump (1.8 Turns) For 2500 Hydraulic Steering Systems
  • L-08 - Replacement Lever & Hardware (For Hydra-Stik System Only)
  • BZ-10 - Replacement Bezel (For Hydra-Stik System Only)
  • HG-SW - Hydra-Glide Steering Wheel For Hydraulic Systems
  • SK-SW - Sidekick Steering Wheel For Hydraulic Systems
